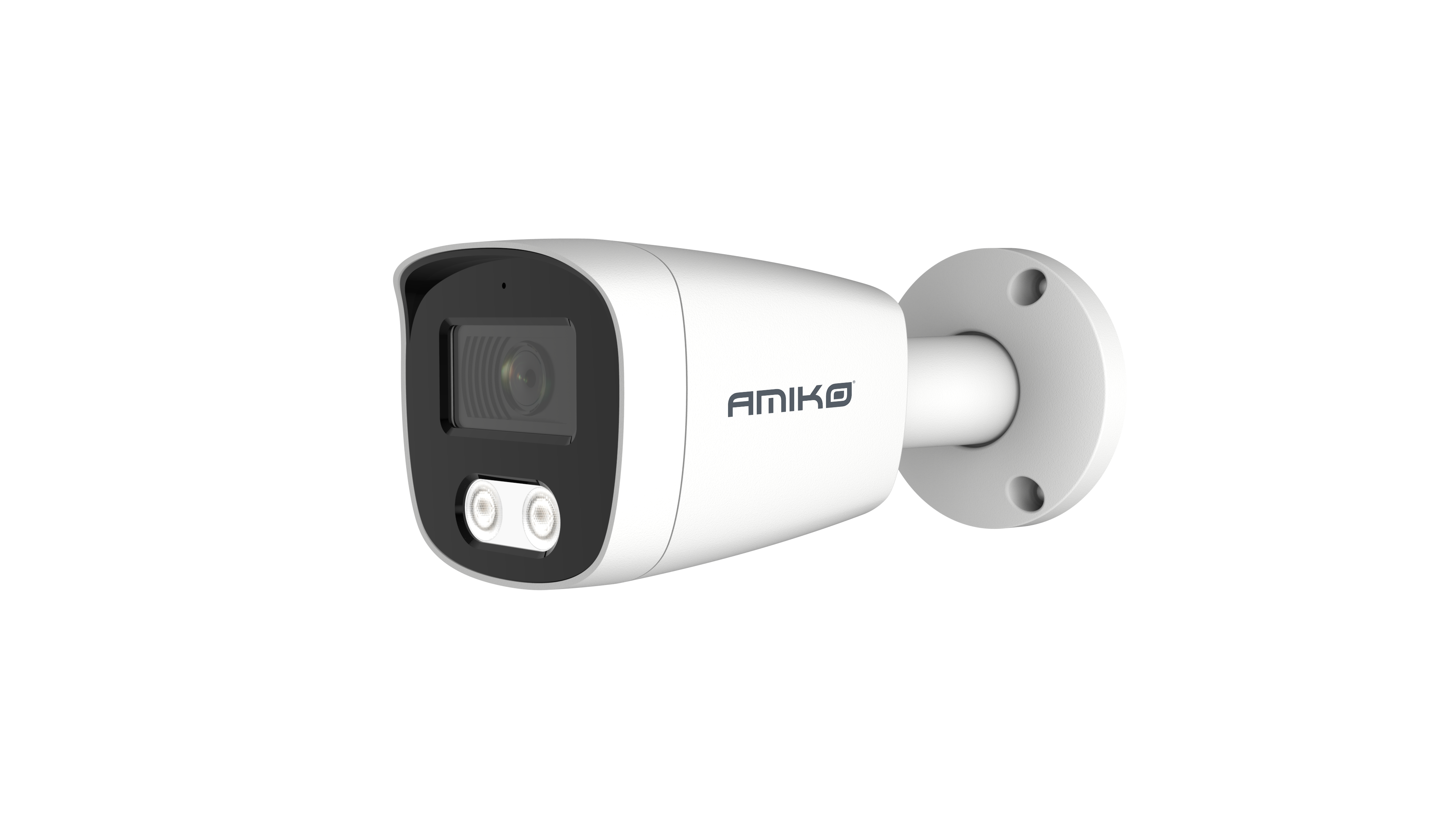

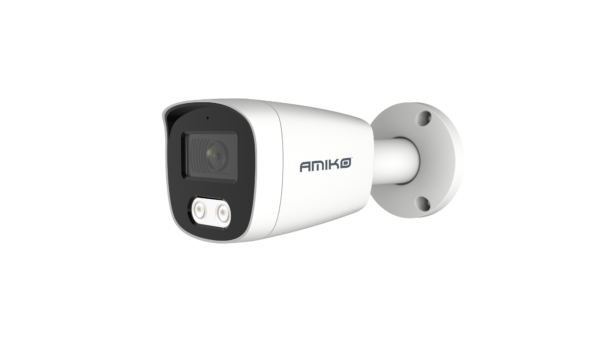

4MP Outdoor Fixed Bullet IP IR 25m, Dual Stream
1/2.5″ CMOS sensor Fuhan SoC
H.264/H.264+/H.265/H.265+ Compression Method
2.8 mm Fixed Lens
SMTP send (Message, JPG)
IR Distance 25m Max.
IP66 Outdoor Metal Case
Built-In Microphone
- Image Sensor 1/2.5″Dual Stream CMOS Sensor, Fuhan Soc
- Resolution 4MP
- Effective Pixels: 2608(H)*1952(V)
- Compression H.264/H.264+/H.265/H.265+
- TV System PAL/NTSC
- Electronic Shutter Time Auto: PAL 1/25-1/10000Sec; NTSC 1/25-1/10000Sec
- Minimum Illumination 0.005Lux
- S/N Ratio ≥52dB
- Scanning System: Progressive
- Video Output Network
Lens
- Focus Length: 2.8mm
- Focus Control: Fixed
- Lens Type: Fixed
- Pixels: 4MP
Night Vision
- Infrared LED: 42µ x 2PCS
- Infrared Distance 25m
- IR Status: Auto Control
- IR Power On: Auto Control
Network
- Ethernet: RJ-45 (10/100Base-T)
- Protocol: TCP/IP,ICMP,HTTP,HTTPS,FTP,DHCP,DNS,DDNS,RTP,RTSP,RTCP,NTP,SMTP
- ONVIF: support ONVIF 2.4
- P2P: yes, Support QR Code
- POE Internal,
- Video Delay 0.3S (Within the Lan)
- Main Stream 1 2592*1944@20fp
- Main Stream 2 2560*1920@20fp
- Main Stream 3 2560*1440@30fp
- Main Stream 4 1920*1080@30fps
- Sub Stream 1 1280*720@25fps
- Sub Stream 2 720*480@25fps
- Sub Stream 2 352*288@25fps
- IE Brower IE8-11, Google Chrome (lower than Ver44), Firefox (lower than Ver53), Mac Safari(lower than version 12)
- Smart Phone: iPhone, iPad, Android, Android Pad
Camera Features
- Day/Night: Color/ B&W (IR-CUT )
- Image Config: Saturation/Brightness/Contrast /Sharpness, Mirror, 3D NR , White Balance, FLK(Flicker Control), Video Tampering
- Corridor Pattern: Support
- Defog Mode: Support
- BLC: Support
- WDR: Support
- Motion Detection: Support
- Privacy Masking: 3 Rectangular Zone
- Recording Mode: NVR/CMs/Web
General
- Housing: Metal, IP66
- Anti-cut Bracket
- IR Cut Filter
- Operation Temperature: -20℃ ~ +60℃ RH95% Max
- Storage Temperature: -20℃ ~ +60℃ RH95% Max
- Power Source: DC12V±10%, 700mA
- Dimension:70(W) x 67.5(H) x 169(L)mm
- Weight: 600g
