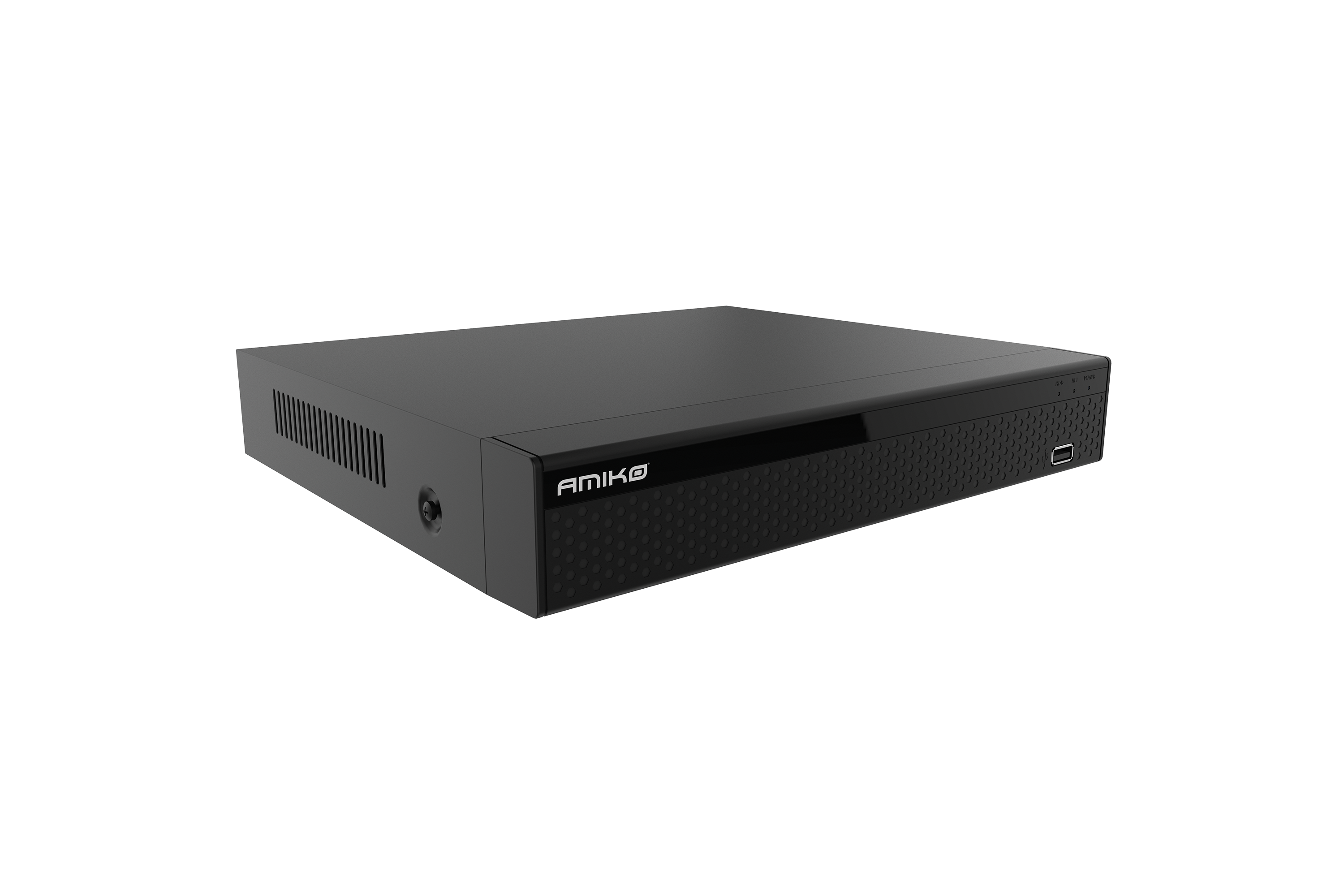

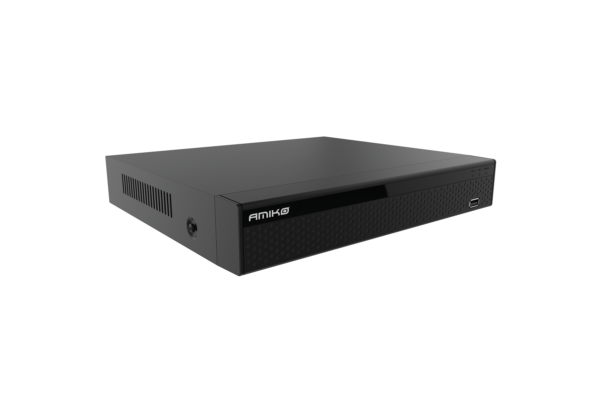

AMIKO XVR442

• Input: Analog: 4*(1920×2160 4*8fps)
• Analog+Network: Analog+Network:2*Analog+7*network(Max 5MP)
• Network: 16*5MP/4MP/3MP/1080P/960P/720P(Total incoming bandwidth
• ≤48M)
• Input: 4CH BNC
• Signal Type: Analog/AHD/CVI/TVI 2.0/TVI 3.0/Network
• Output :1HD,1 VGA

Audio:

• Input: 2 Channel, RCA
• Output: 1 Channel, RCA

Display:

• VGA: Resolution: 1920 × 1080P/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz,1024 × 768/60Hz
• HD Output: Resolution:1920 × 1080P/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz,1024 × 768/60Hz
• Display Split: 9 Channel/4 Channel / 1Channel
• Privacy Masking: 3 Rectangular Zones (Each camera)
• OSD: Camera title, Time, Video loss, Alarm, Motion detection, Recording

Network:

• Interface: 1 RJ45 10M/100M Adaptive Ethernet Interface
• Network Functions:TCP/IP, HTTP, UPnP, DNS, NTP, SMTP, PPPoE, DHCP, FTP, DDNS, RTP, RTSP, RTCP
• DDNS: Dyndns, No-ip, Oray,
• Web Browser: IE8-11, Google Chrome (lower than Ver44), Firefox (lower than Ver53)
• CMS Software: Support Windows 7/ Windows 8/Windows 10
• Extra Stream: CIF(1~25fps)
• Smart Phone: iPhone, ipad, Android ,Android pad

Hard disk driver:

• Interface Type 1 SATA Interface
• Capacity: 1 SATA Hard Disk (2.5″/3.5″ SATA, Up to 8TB)

Physical specifications:

• USB Interface: 2 USB 2.0 Interfaces
• Power consumption: DC 12V/2A ≤20W (Without Hard Disk)
• Working Environment: -10~55℃/10~90%
• Dimension (W×D×H): 260*215*43 (mm)
• Weight: 2kg (Without HDD)
