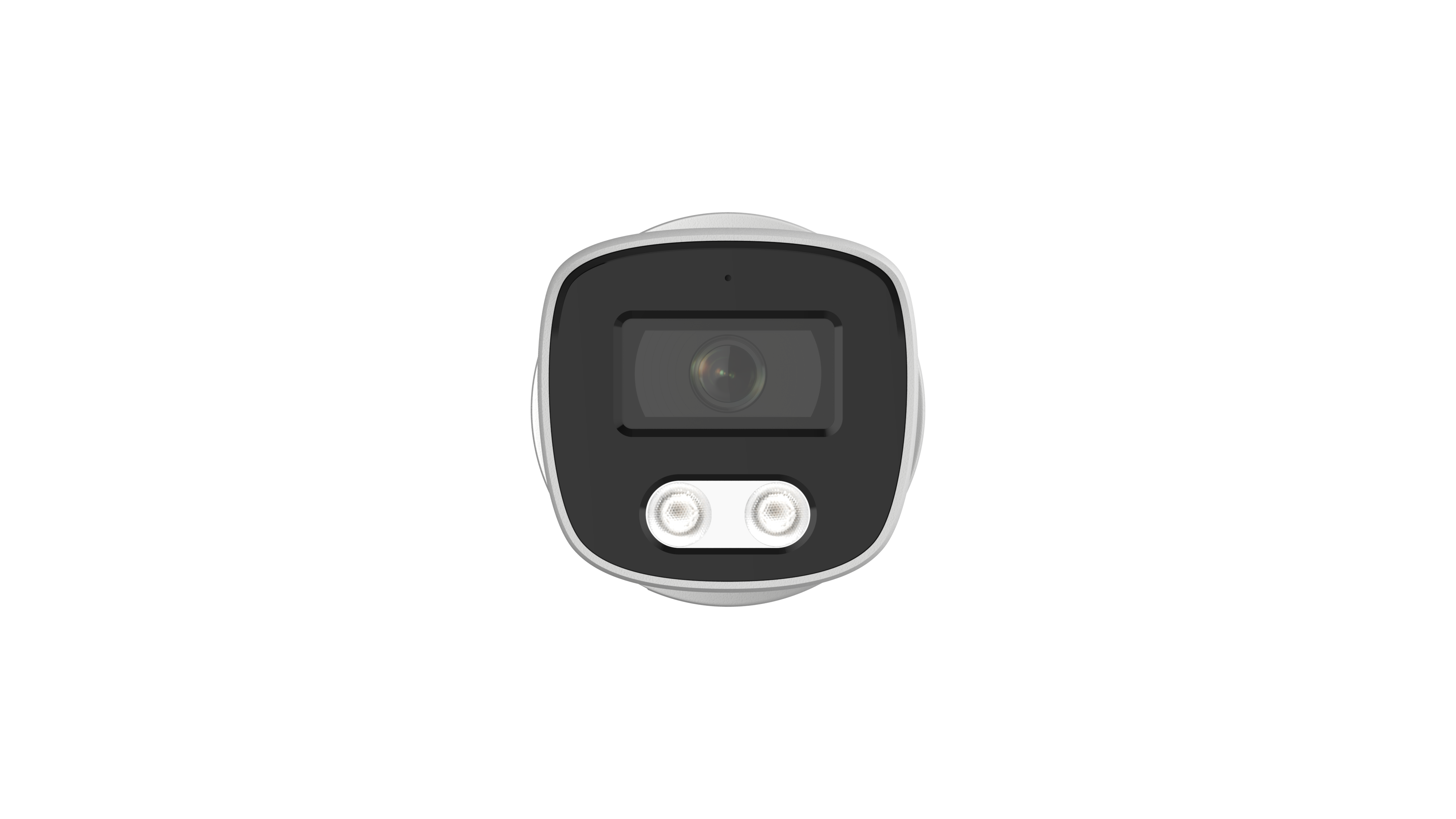

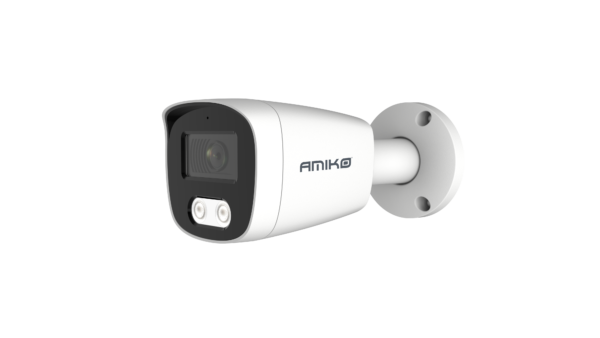

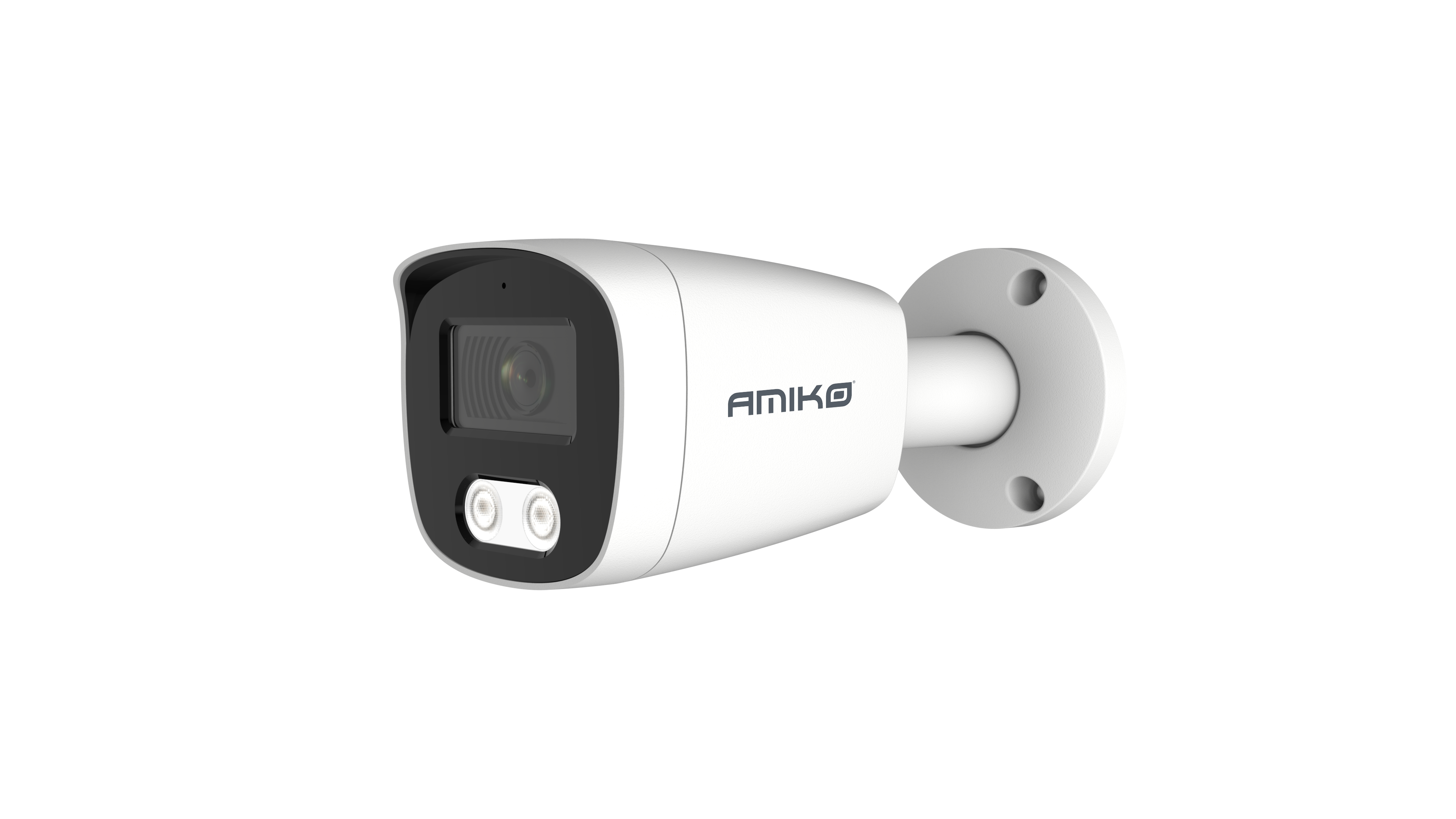

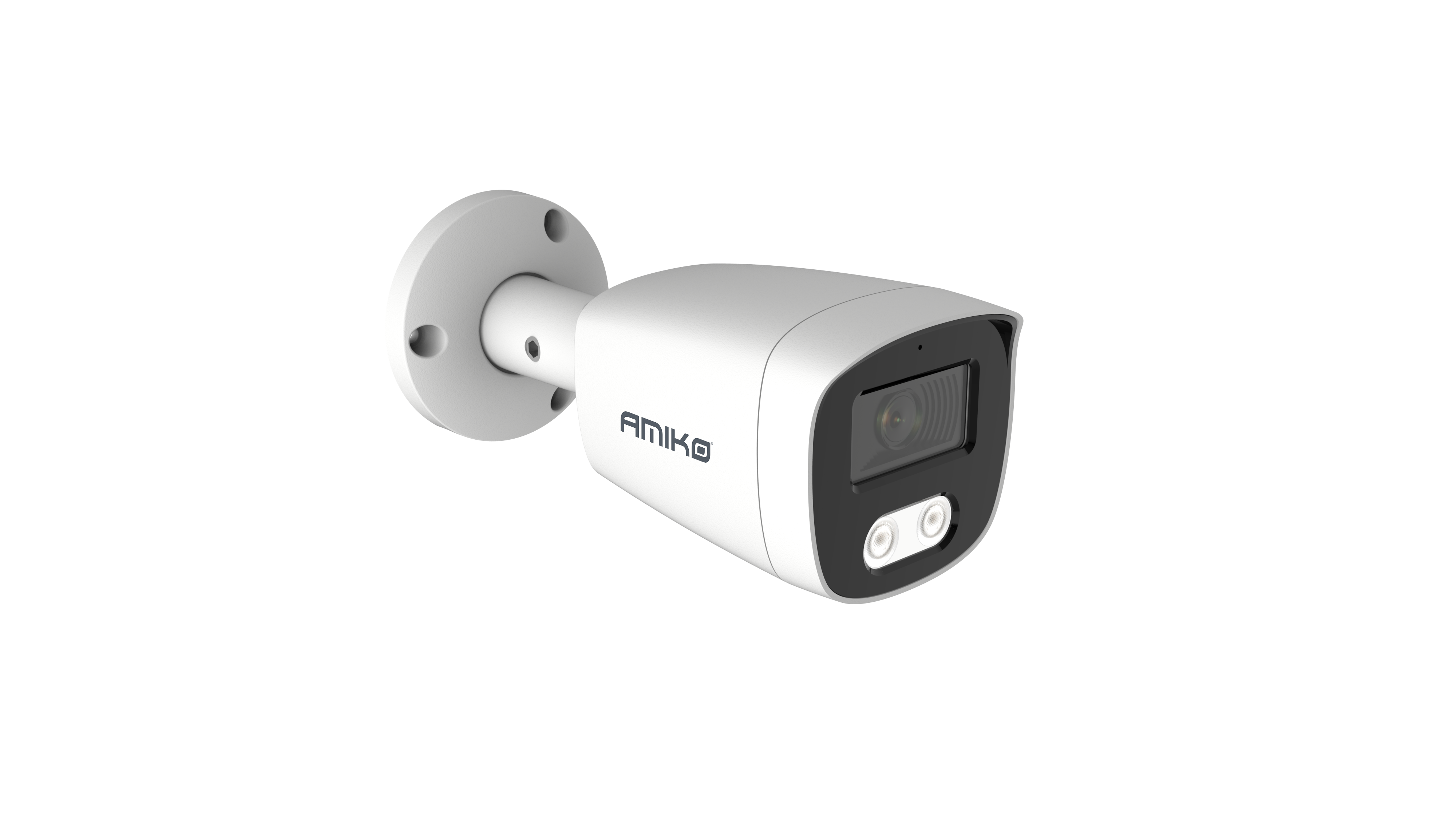

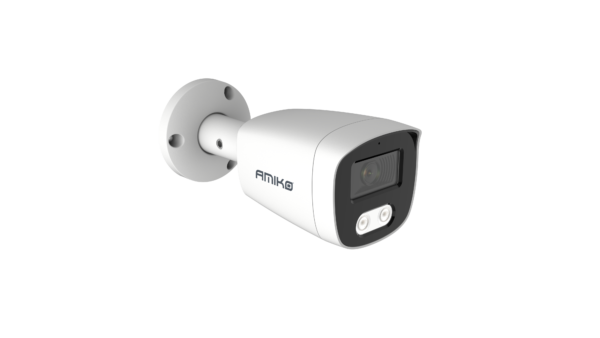

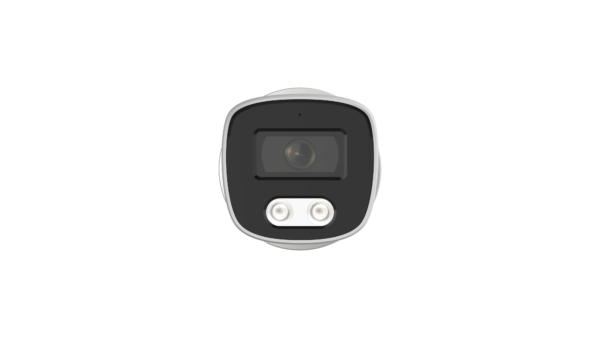

AMIKO B25M400-AUDIO POE

4MP Outdoor Fixed Bullet IP IR 25m, Dual Stream

1/2.5″ CMOS sensor Fuhan SoC

H.264/H.264+/H.265/H.265+ Compression Method

2.8 mm Fixed Lens

SMTP send (Message, JPG)

IR Distance 25m Max.

IP66 Outdoor Metal Case

Built-In Microphone

• Image Sensor 1/2.5″Dual Stream CMOS Sensor, Fuhan Soc
• Resolution 4MP
• Effective Pixels: 2608(H)*1952(V)
• Compression H.264/H.264+/H.265/H.265+
• TV System PAL/NTSC
• Electronic Shutter Time Auto: PAL 1/25-1/10000Sec; NTSC 1/25-1/10000Sec
• Minimum Illumination 0.005Lux
• S/N Ratio ≥52dB
• Scanning System: Progressive
• Video Output Network

Lens

• Focus Length: 2.8mm
• Focus Control: Fixed
• Lens Type: Fixed
• Pixels: 4MP

Night Vision

• Infrared LED: 42µ x 2PCS
• Infrared Distance 25m
• IR Status: Auto Control
• IR Power On: Auto Control

Network

• Ethernet: RJ-45 (10/100Base-T)
• Protocol: TCP/IP,ICMP,HTTP,HTTPS,FTP,DHCP,DNS,DDNS,RTP,RTSP,RTCP,NTP,SMTP
• ONVIF: support ONVIF 2.4
• P2P: yes, Support QR Code
• POE Internal,
• Video Delay 0.3S (Within the Lan)
• Day/Night: Color/ B&W (IR-CUT )
• • Image Config: Saturation/Brightness/Contrast /Sharpness, Mirror, 3D NR , White Balance, FLK(Flicker Control), Video Tampering
  • Corridor Pattern: Support
  • Defog Mode: Support
  • BLC: Support
  • WDR: Support
  • Motion Detection: Support
  • Privacy Masking: 3 Rectangular Zone
  • Recording Mode: NVR/CMs/Web

  General

  • Housing: Metal, IP66
  • Anti-cut Bracket
  • IR Cut Filter
  • Operation Temperature: -20℃ ~ +60℃ RH95% Max
  • Storage Temperature: -20℃ ~ +60℃ RH95% Max
  • Power Source: DC12V±10%, 700mA
  • Dimension:70(W) x 67.5(H) x 169(L)mm
  • Weight: 600g
