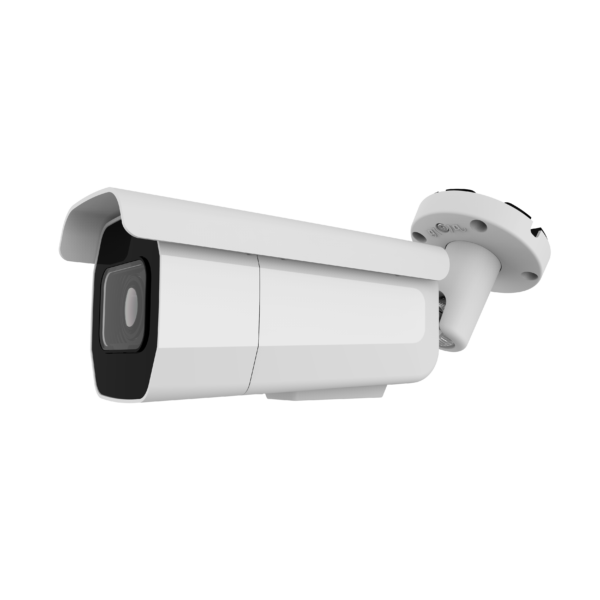

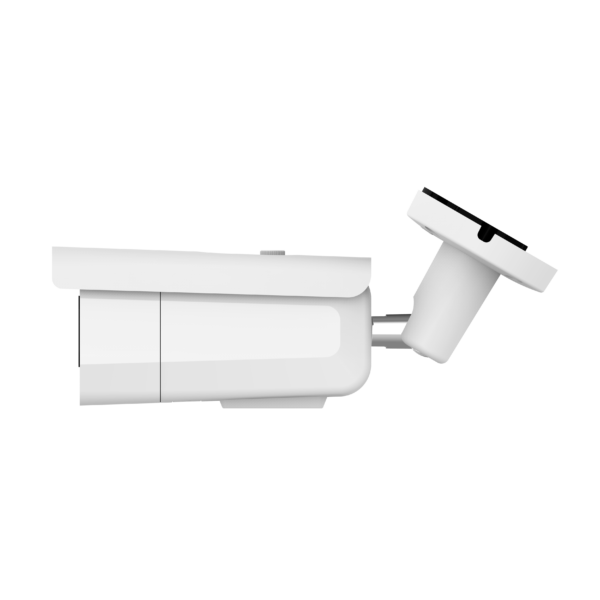

4K Outdoor Motorized
Varifocal Bullet IP IR 60m
- 1/2.8″ Sony CMOS sensor / max 20fps with HDR (NovaTek Soc)
- H.264/H.264+/H.265/H.265+ Compression Method
- 2.7-13.5mm Motor Zoom Lens
- IR Distance 60m Max.
- IP66 Outdoor Metal Case
- Support:Chrome brow
- Image Sensor: 1/2.8″, NovaTek Soc
- Resolution: 3840*2192@20fps
- Effective Pixels: 3864(H)*2180(V)
- Compression: H.264/H.264+/H.265/H.265+/
- TV System: PAL/NTSC
- Electronic Shutter Time: Auto: PAL 1/25-1/10000Sec; NTSC 1/25-1/10000Sec
- Minimum Illumination 0.01Lux
- S/N Ratio ≥ 52dB
- Scanning System: Progressive
- Video Output: Network
- Lens
- Focus Length: 2.7-12.5mm
- Focus Control: Motorized
- Lens Type: Varifocal
- Pixels: 4K
Night Vision
- Infrared LED: 42 x 6pcs
- Infrared Distance: 60m
- IR Status: Auto Control
- IR Power On: Auto Control
Network
- Ethernet: RJ-45 (10/100Base-T)
- Protocol: TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, SMTP
- ONVIF: Support ONVIF 2.4
- P2P: YES, Support QR Code
- POE: Internal, Support IEEE 802.3af
- Video Delay: 0.3s (Within the Lan)
- Main Stream
- 1_3840*2160@20fps
- 2_2592*1536@20fps
- 3_2560*1440@20fps
- 4_1920*1080@20fps
- 5_1280*720@20fps
- Sub Stream:
- 1280*720@20fps
- 720*480@20fps
- IE Browser: IE8-11, Google Chrome , Firefox , Mac Safari (lower than version 12)
- Smart Phone: iPhone, iPad, Android
Camera Features:
- Color/ B&W (IR-CUT )
- Saturation/Brightness/Contrast /Sharpness, Mirror, 3D NR , White Balance, FLK(Flicker Control), Video Tampering, HLC, Distortion
- Corridor Pattern: Support
- Defog Mode: Support
- ROI: Support
- BLC: Support
- Motion Detection: Support
- Privacy Masking: 3 Rectangular Zone
- Recording Mode: NVR/CMS/Web
General
- Housing: Metal ,IP66
- Anti-cut Bracket
- IR Cut Filter
- Operation Temperature -20℃ ~ +60℃ RH95% Max
- Storage Temperature -20℃ ~ +60℃ RH95% Max
- Power Source DC12V±10%, 950mA
- Dimensions: 179(W) x 90(H) x 90(D)mm
- Weight: 1650g
